Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications
Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications

Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Sanxin
رقم الموديل: SX1287
شروط الدفع والشحن:
الحد الأدنى لكمية: 2
وقت التسليم: 5-25 أيام
شروط الدفع: تي/تي
ﺎﺘﺼﻟ ﺍﻶﻧ
  • معلومات تفصيلية
  • منتوج وصف

معلومات تفصيلية
بالقطع: معالجة كربيد التنغستن خدمة تصنيع المعدات الأصلية: مقبول
الحصانة الكيميائية: عالي درجة حرارة التبريد: 1400 - 1600 درجة مئوية
اسم المنتج: كم كربيد التنجستن ميزة: مقاومة التآكل العالية
صناعة: صناعة النفط والغاز درجة حرارة العمل: -200 درجة مئوية ~ +800 درجة مئوية
التعبئة: حزمة التصدير القياسية نطاق الحجم: قابلة للتخصيص
خدمة: ODM OEM تصميم: مع أخاديد الزيت
درجة حرارة التشغيل: ما يصل إلى 800 درجة مئوية ارتداء المقاومة: ممتاز
إبراز:

Non-Magnetic Tungsten Carbide Sleeve,High Wear Resistance WC-Ni Alloy Ring,Precision Ground Precision Bushing

,

High Wear Resistance WC-Ni Alloy Ring

,

Precision Ground Precision Bushing

منتوج وصف

Non-Magnetic Tungsten Carbide Outer Diameter Sleeve
WC-Ni Alloy Precision Ring For Magnetic-Sensitive Applications
Zero Magnetic Signature. Maximum Performance. In applications where even the slightest magnetic interference is unacceptable, our Non-Magnetic Tungsten Carbide Outer Diameter (O.D.) Sleeve sets the new standard. Engineered from specialized Tungsten Carbide-Nickel (WC-Ni) alloy, this precision component delivers the legendary hardness and wear resistance of carbide with a guaranteed non-magnetic property, making it the indispensable choice for MRI systems, semiconductor fabrication equipment, high-end scientific instrumentation, and aerospace guidance systems.
Key Material Advantages
  • Guaranteed Non-Magnetic: Magnetic permeability (µ) consistently measures < 1.002, ensuring zero impact on sensitive magnetic fields.
  • Exceptional Hardness & Wear Resistance: With a hardness of 90-92 HRA, it offers dramatically longer service life compared to tool steel or stainless steel, reducing downtime and maintenance costs.
  • Outstanding Dimensional Stability: Low coefficient of thermal expansion and high rigidity ensure precise tolerances are maintained under varying operational temperatures and loads.
  • Superior Corrosion Resistance: Excellent resistance to many chemicals, coolants, and cleaning agents, suitable for demanding industrial and cleanroom environments.
Typical Specifications & Machining Capabilities
Our sleeves are manufactured to meet the most stringent requirements. Standard and custom geometries are available.
Parameter Standard Capability High-Precision Option
Outer Diameter (O.D.) Range Ø3mm to Ø150mm Custom sizes available
O.D. Tolerance ±0.005 mm (g6, h6 standard) ± 0.001 mm (h4, h5)
Inner Diameter (I.D.) Through-hole or specific bore as per drawing Matched to your shaft specification
Concentricity (O.D. to I.D.) ≤ 0.008 mm ≤ 0.003 mm
Surface Finish (O.D.) Ra 0.4 µm (ground) Ra 0.1 µm or better (lapped/polished)
Length / Height Custom, according to application
Common Configurations
  • Simple Sleeve/Bushing: A straight ring for spacing, wear protection, or as a non-magnetic liner.

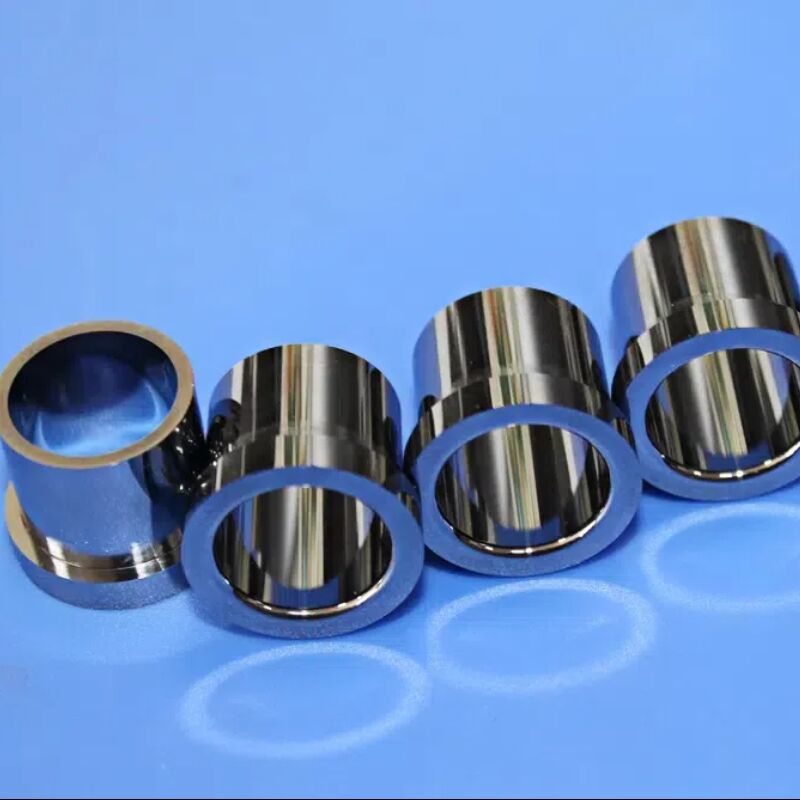

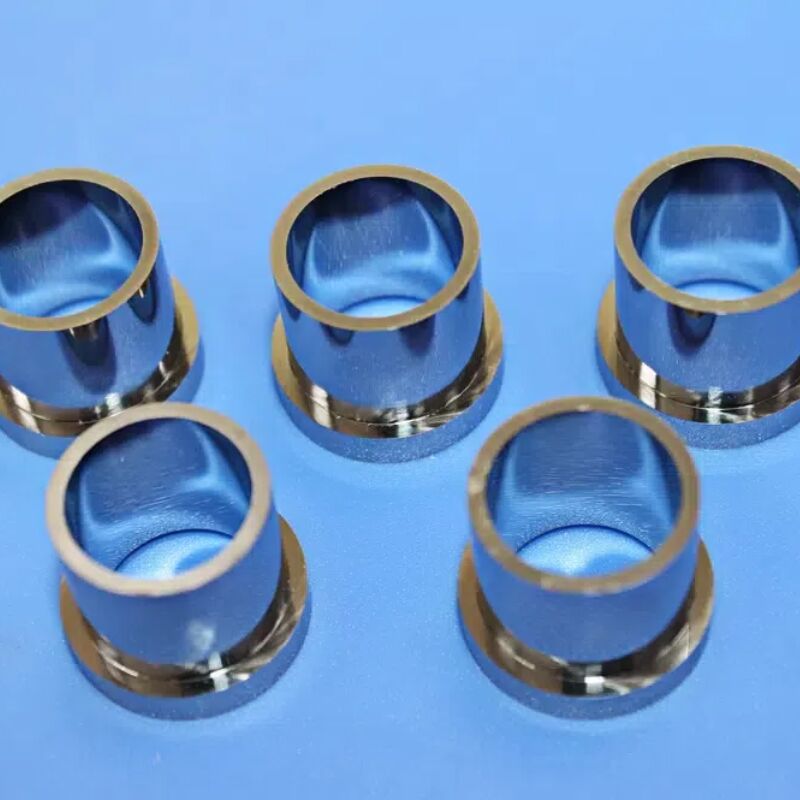

  • Flanged Sleeve: Integrates a mounting flange for easy axial location and secure fastening.

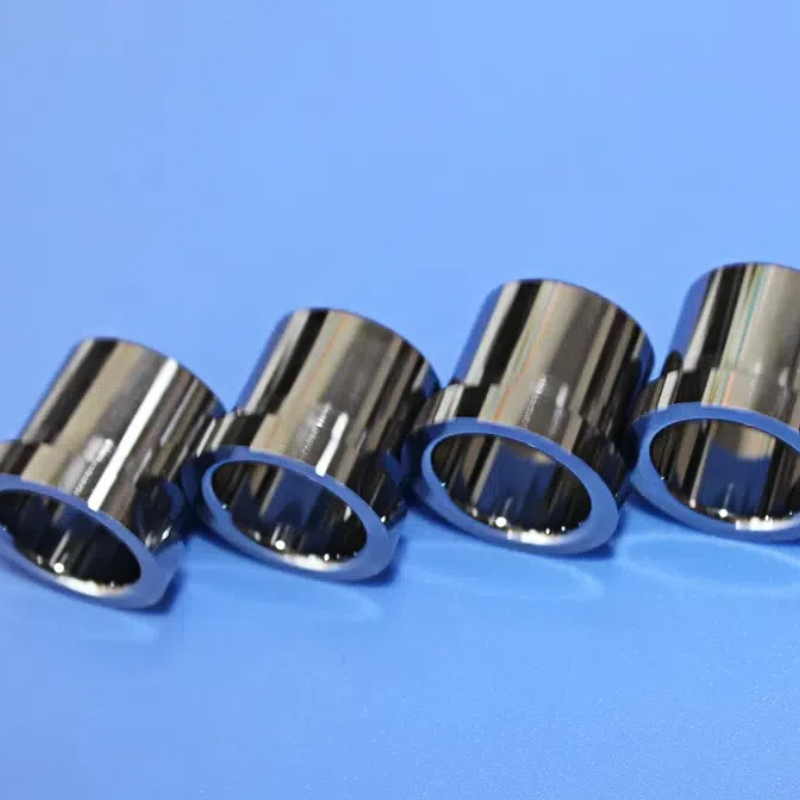

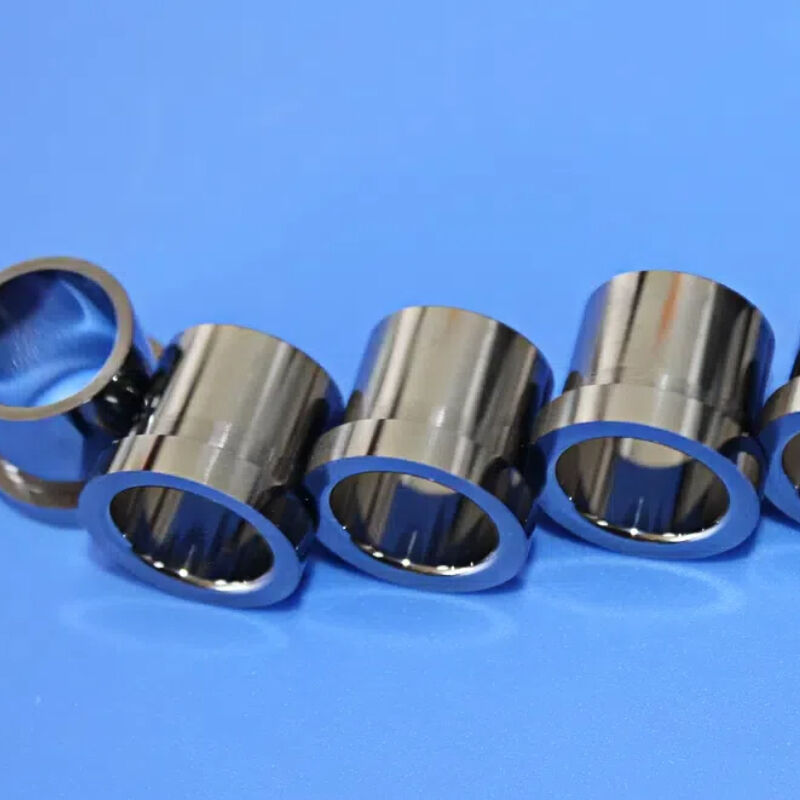

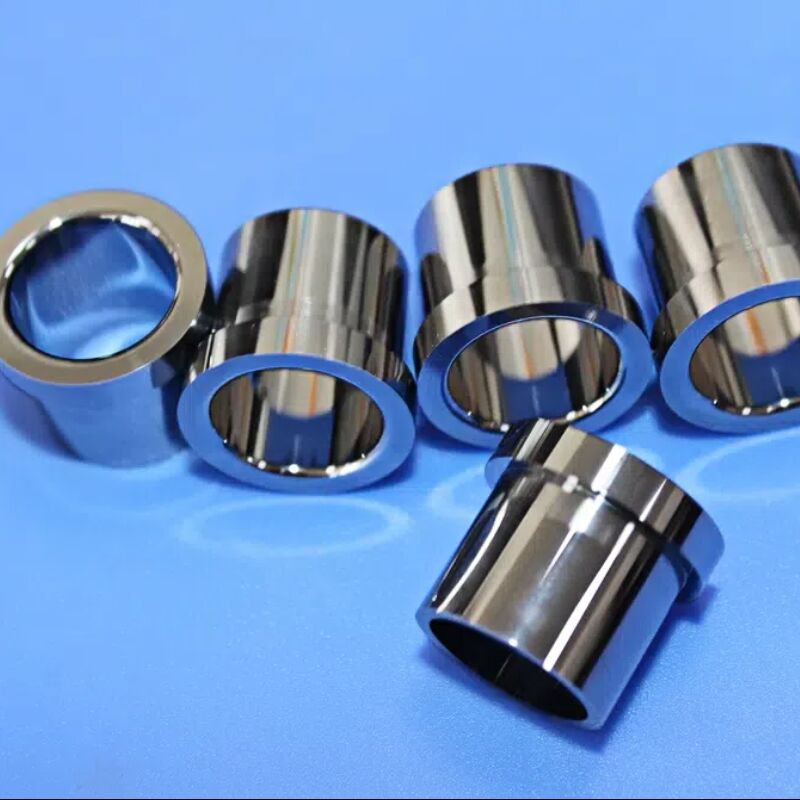

  • Stepped Sleeve: Features multiple outer diameters for complex assembly interfaces.
  • Custom Geometries: Including grooves, threads, or unique profiles machined to your exact blueprint.
Our Commitment
  • Custom Engineering Support: Our team works with you to optimize the design for manufacturability and performance.
  • Consistent Global Supply: Reliable logistics and export documentation for seamless integration into your international supply chain.
Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications 0
