High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications
High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications

High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Sanxin
رقم الموديل: SX1279
شروط الدفع والشحن:
الحد الأدنى لكمية: 2
وقت التسليم: 5-25 أيام
شروط الدفع: / تي تي، خطاب الاعتماد، ويسترن يونيون
ﺎﺘﺼﻟ ﺍﻶﻧ
  • معلومات تفصيلية
  • منتوج وصف

معلومات تفصيلية
يكتب: ديناميكية وثابتة ميزة: قوة عالية
مقاس: مصنوع بطريقة مخصصة ارتداء المقاومة: ممتاز
ارتداء معدل: أقل من 0.1 ملم³/ميجا جول المقاومة الكيميائية: مقاومة لمعظم الأحماض والقلويات
نوع المنتج: المواد الصناعية صلابة: 9 موس
بالقطع: معالجة كربيد التنغستن الموصلية الكهربائية: 0.13% إياكس
ليونة: ليونة جيدة وقابلية للآلات الحصانة الكيميائية: عالي
إبراز:

92 HRA Hardness Tungsten Carbide Cutters,High Precision Cutting Non-magnetic Tungsten Carbide Cutters,WC-8Ni Non-magnetic Hard Alloy Precision Shearing Components

,

High Precision Cutting Non-magnetic Tungsten Carbide Cutters

,

WC-8Ni Non-magnetic Hard Alloy Precision Shearing Components

منتوج وصف

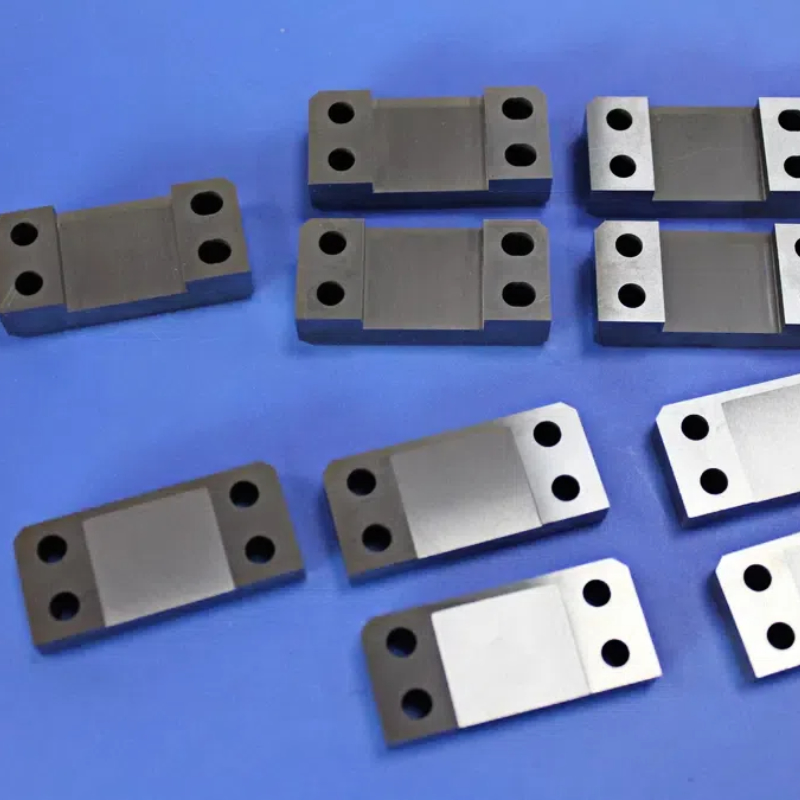

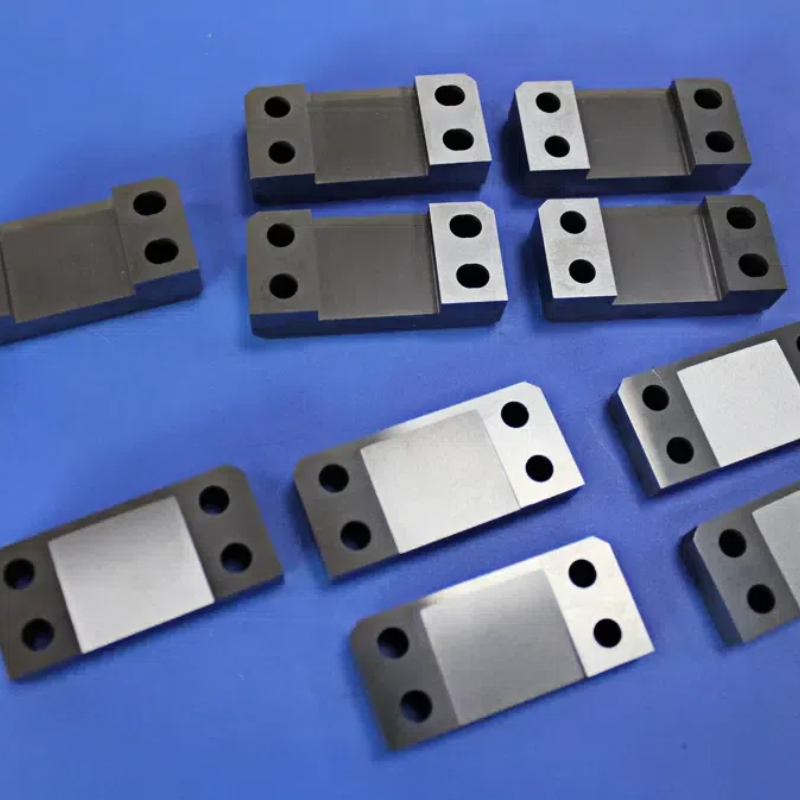

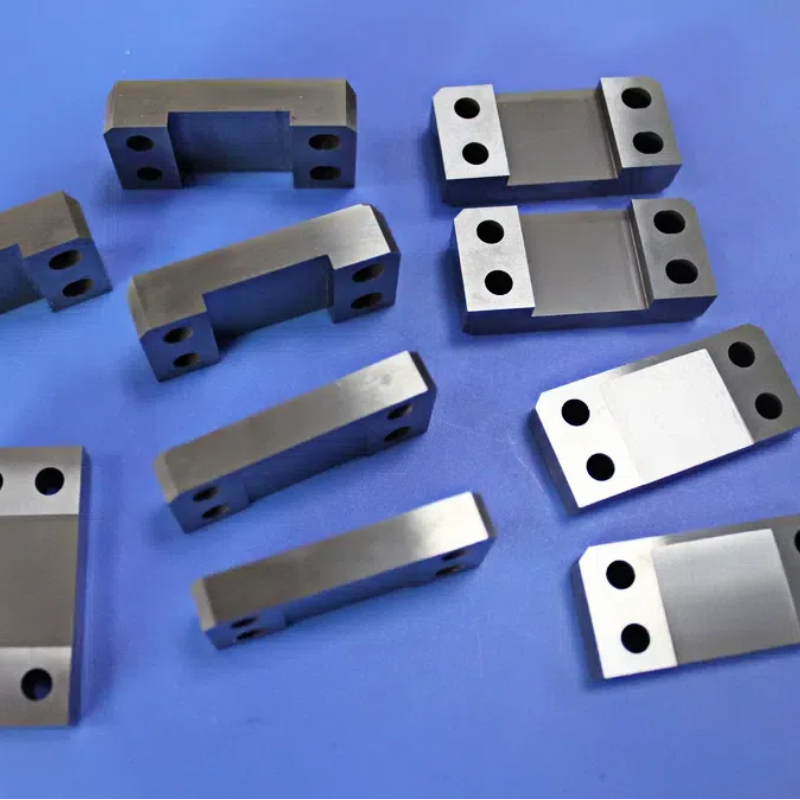

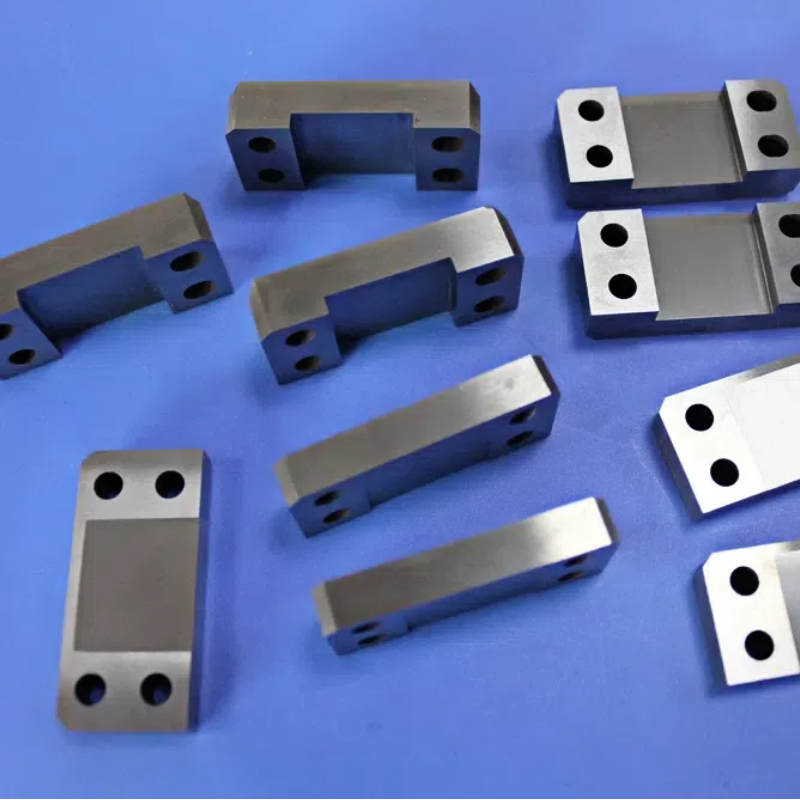

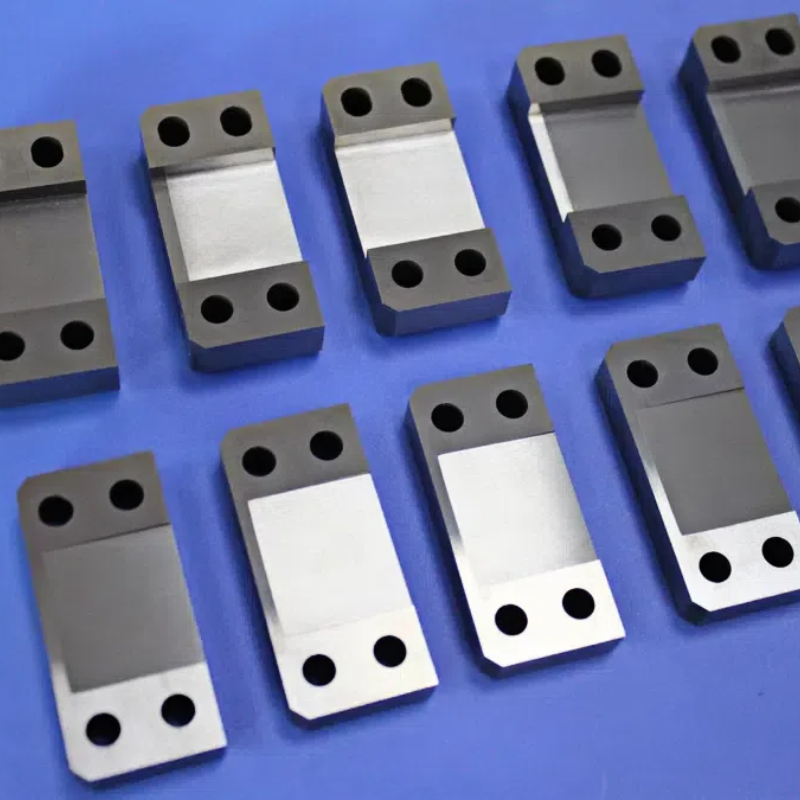

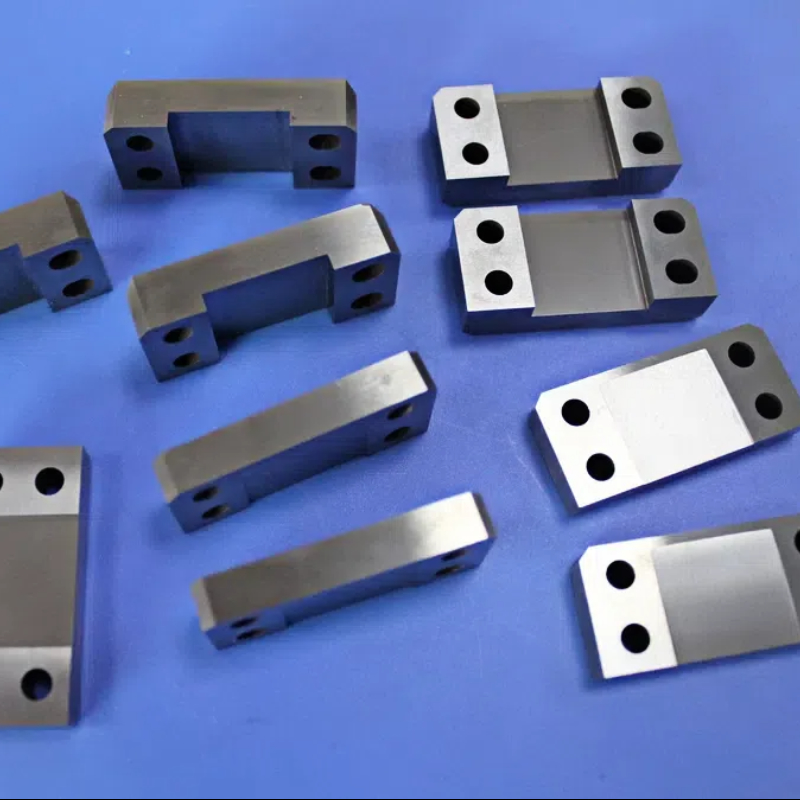

Precision Shearing Components For Medical And Electronic Applications With A Cutting Edge Hardness Of 92 HRA
The non-magnetic tungsten steel scissor parts, specially developed for high-precision cutting scenarios such as medical surgery and electronic manufacturing, adopt a special WC-Ni non-magnetic formula and combine it with nano-level blade edge processing technology to achieve zero magnetic interference, ultra-sharpness and long life precision cutting performance in sensitive working environments, completely solving the problems of magnetic adsorption and rapid passivation of traditional scissor parts.
Material Science
  • Material Formulation: WC-8Ni Non-magnetic Hard Alloy
Magnetic Properties
  • Permeability: <1.002
  • Remanence: <0.03 mT
  • Completely free of magnetic interference
Mechanical Properties
  • Edge Hardness: 92 HRA
  • Bending Strength: 2800 MPa
  • Fracture Toughness: 12 MPa*m¹/²
  • Wear Resistance: 50 times that of conventional steel
Machining Details
Edge Treatment
  • Nanoscale diamond grinding
  • Laser precision sharpening
  • Electrolytic polishing for deburring
Precision Specifications
  • Edge straightness: ≤0.003mm/50mm
  • Edge angle accuracy: ±0.1°
  • Surface roughness: Ra 0.1-0.2μm
  • Edge passivation radius: R0.01mm
Performance Analysis
Performance Indicators Non-magnetic Tungsten Carbide Cutters Core Advantages
Magnetic Permeability <1.002 Completely eliminates magnetic interference
Blade Hardness 92 HRA 8 times better wear resistance
Lifespan 500,000 cycles 5 times longer lifespan
Blade Edge Retention Excellent Maintains sharpness for a long time
Corrosion Resistance Excellent Adaptable to harsh environments
Customized Services
  • Customized cutting edge angles
  • Rapid response to non-standard sizes
  • Special surface treatments
  • Small batch trial production services
